Nicla Vision

Nicla Form Factor

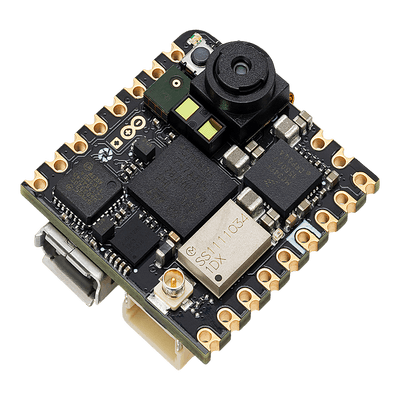

The Arduino Nicla Vision is our smallest form factor yet.

LSM6DSOXTR 6-axis IMU

This 6-axis IMU allows to obtain 3D gyroscopic and 3D accelerometer data. It is also possible to do machine learning on the IMU for gesture detection, offloading computation load from the main processor.

Always-on 3D accelerometer and 3D gyroscope with smart FIFO up to 4 kByte. Accelerometer full scale: ±2/±4/±8/±16 g. Gyroscope full scale: ±125/±250/±500/±1000/±2000 dps.

DATASHEET

STM32H747AII6

The Nicla Vision features an STM32H747AII6 Dual ARM® Cortex® - M7 core up to 480 MHz + M4 core up to 240 MHz.

Dual-core 32-bit Arm® Cortex®-M7 core with double-precision FPU and L1 cache up to 480 MHz, and 32-bit Arm® Cortex®-M4 core with FPU up to 240 MHz. Includes full set of DSP instructions and Memory Protection Unit (MPU).

DATASHEET

2MP color camera

The board uses the GC2145, a 2MP color camera.

2 Megapixel CMOS camera with on-chip 10-bit ADC, 1.75 μm pixel size, focal length: 2.2 mm, F-value: 2.2 ± 5%, view angle: 80°, distortion: < 1.0%.

DATASHEET

Omnidirectional microphone

The MP34DT06JTR digital MEMS microphone is omnidirectional and operate via a capacitive sensing element with a high signal to noise ratio.

AOP = 122.5 dBSPL, 64 dB signal-to-noise ratio, omnidirectional sensitivity, –26 dBFS ± 1 dB sensitivity.

DATASHEET

Murata® 1DX Wi-Fi®/Bluetooth® Module

Wi-Fi® 802.11b/g/n with 65 Mbps throughput. Bluetooth® 4.2 BR/EDR/LE for wireless connectivity options.

VL53L1CBV0FY/1 Time-of-Flight Sensor

Fully integrated miniature module with 940 nm invisible laser (VCSEL) emitter and receiving array with integrated lens. Detection range up to 400 cm with full field of view (FoV).

NXP® SE050C2 Crypto

Common Criteria EAL 6+ certified up to OS level. RSA & ECC functionalities with high key lengths and future-proof curves. AES & 3DES encryption and decryption. HMAC, CMAC, SHA operations. Secured flash user memory up to 50 kB with SCP03 bus encryption.

Power Management & Battery

MAX17262REWL+T Fuel Gauge with ModelGauge m5 EZ for battery monitoring, low 5.2 μA operating current, no calibration required. MC34PF1550A0EP Power Management IC. AT25QL128A-UUE-T 16 MB Flash memory.

Condiciones de Operación Recomendadas

• Voltaje de entrada desde VIN pad: 3.5 - 5.5 V (típico 5.0 V)
• Voltaje de entrada desde USB: 4.8 - 5.5 V (típico 5.0 V)
• Voltaje de entrada desde batería: 3.5 - 4.7 V (típico 3.7 V)
• Temperatura de operación: -40°C a 85°C (típico 25°C)

Consumo de Energía

• Consumo promedio en modo deep sleep: 374 μA
• Consumo promedio durante captura de imagen: 105 mA
