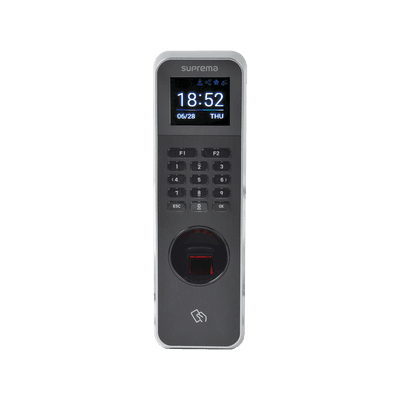

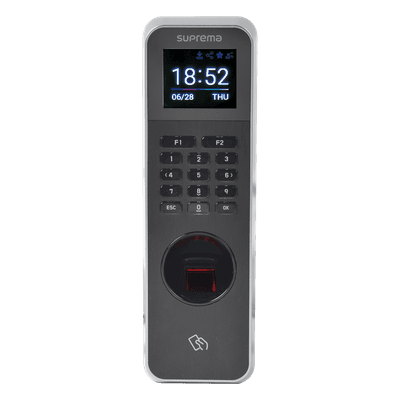

Lector de Huella IP67 Con Teclado y Lector de Tarjetas RFIDNFC y (125kHz EM, HID Prox &13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR),NFC y BLUETOOTH, Certificado FBI PIV

Lector de Huella IP67 Con Teclado y Lector de Tarjetas RFIDNFC y  (125kHz EM, HID Prox &13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR),NFC y BLUETOOTH, Certificado FBI PIV
Lector de Huella IP67 Con Teclado y Lector de Tarjetas RFIDNFC y  (125kHz EM, HID Prox &13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR),NFC y BLUETOOTH, Certificado FBI PIVLector de Huella IP67 Con Teclado y Lector de Tarjetas RFIDNFC y  (125kHz EM, HID Prox &13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR),NFC y BLUETOOTH, Certificado FBI PIVLector de Huella IP67 Con Teclado y Lector de Tarjetas RFIDNFC y  (125kHz EM, HID Prox &13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR),NFC y BLUETOOTH, Certificado FBI PIV

Modelo: BLN2PAB

Marca: SUPREMA

Q 18,143.40

Precio sujeto a cambios.
Solicitar cotización
SUPREMA

Descargas



BioLite N2 Bluetooth y NFC

Terminal de Huella IP67 Para exterior Control de Accesos y Asistencias



Suprema, uno de los principales líderes biométricos en seguridad tecnológica, presenta uno de los mejores algoritmos biométricos con una ingeniería superior. Se encuentra constantemente desarrollando y produciendo productos líderes en la industria, extendiendo su portafolio de productos de control de acceso y tiempo y asistencia en todo el mundo.

Características Físicas y Eléctricas:
  • Pantalla: 1.77” TFT LCD.
  • Comunicación: TCP/IP..
  • Interfaz RS-485 para comunicación o módulo esclavo SIO2.
  • Salida de relevador.
  • Wiegand: entrada y salida. (seleccionable)
  • Certificados: CE, FCC, KC, RoHS, REACH, WEE.
  • Alimentación: 12 Vcc, 1 A  (fuente no incluida)
  • Dimensiones: 155 x 155 x 40 mm.
Usuarios:
  • Usuarios (1:1) 10,000.
  • Usuarios (1:N) 10,000.
  • Plantillas (huellas) (1:1) 20,000.
  • Plantillas (huellas) (1:N) 20,000.
  • Eventos: 1 000 000.
Notas :
  • BLN2OAB Con Teclado y Lector de Tarjetas RFIDNFC y (125kHz EM, HID Prox &13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR),NFC y BLUETOOTH.
  • Requiere de software BIOSTAR2 2.6 o superior (no incluido)





Visite nuestra Base de conocimiento de


SUPREMA



Specificationes

Scroll left/right



Scroll left/right

Model Name

Credential

  • RF Option

  • RF read range 2)

  • Mobile Card

Protections

  • IP rating

  • IK rating

Fingerprint

  • Template

  • Extractor / Matcher

  • Live Fingerprint Detection

Capacity

  • Max. User

  • Max. Credential (1:N)

  • Max. Credential (1:1)

  • Max. Text Log

  • Max. Image Log

General

  • CPU

  • Memory

  • Crypto Chip

  • LCD Type

  • LED

  • Sound

  • Operating Temperature

  • Storage Temperature

  • Operating Humidity

  • Storage Humidity

  • Weight

  • Dimension (WxHxD, mm)

  • Certifications

Interface

  • Wi-Fi

  • Ethernet

  • RS-485

  • RS-485 Communication Protocol

  • Wiegand

  • TTL Input

  • Relay

  • USB

  • SD Card

  • PoE

  • Intercom

  • Tamper

Electrical

  • Power

BLN2-ODB

125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, NFC & 2.4GHz BLE

MIFARE/DESFire: 50 mm, EM/FeliCa: 30 mm

NFC, BLE

IP67

Not supported

SUPREMA / ISO 19794-2 / ANSI 378

MINEX certified and compliant

Supported (SW-based)

10,000

Fingerprint: 10,000

Fingerprint: 10,000 / Card: 10,000 / PIN: 10,000

1,000,000

Not supported

1.2 GHz

4GB Flash + 64Mb RAM

Supported

1.77” color TFT LCD

Not supported

16-bit

-20°C ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 255g, Bracket: 57g (including washers and bolts)

58 x 190 x 44 (Bottom) / 34.6 (Top) (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE

Not supported

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Master / Slave (Selectable)

OSDP V2 Compliant

1 ch Input / Output (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

Not supported

Not supported

Supported

Voltage: 12 Vdc
Current: Max. 0.4 A

BLN2-OAB

125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos, NFC & 2.4GHz BLE

MIFARE/DESFire: 50 mm, EM/FeliCa: 30 mm

NFC, BLE

IP67

Not supported

SUPREMA / ISO 19794-2 / ANSI 378

MINEX certified and compliant

Supported (SW-based)

10,000

Fingerprint: 10,000

Fingerprint: 10,000 / Card: 10,000 / PIN: 10,000

1,000,000

Not supported

1.2 GHz

4GB Flash + 64Mb RAM

Supported

1.77” color TFT LCD

Not supported

16-bit

-20°C ~ 50°C (-4°F ~ 122°F)

-40°C ~ 70°C (-40°F ~ 158°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 255g, Bracket: 57g (including washers and bolts)

58 x 190 x 44 (Bottom) / 34.6 (Top) (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE

Not supported

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Master / Slave (Selectable)

OSDP V2 Compliant

1 ch Input / Output (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

Not supported

Not supported

Supported

Voltage: 12 Vdc
Current: Max. 0.4 A

BLN2-PAB

125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV31), FeliCa, iCLASS SE/SR/Seos, NFC & 2.4GHz BLE

MIFARE/DESFire: 50 mm, EM/FeliCa: 30 mm

NFC, BLE

IP67

Not supported

SUPREMA / ISO 19794-2 / ANSI 378

MINEX certified and compliant

Supported (SW-based)

10,000

Fingerprint: 10,000

Fingerprint: 10,000 / Card: 10,000 / PIN: 10,000

1,000,000

Not supported

1.2 GHz

4GB Flash + 64Mb RAM

Supported

1.77” color TFT LCD

Not supported

16-bit

-10°C ~ 50°C (14°F ~ 122°F)

-20°C ~ 60°C (-4°F ~ 140°F)

0% ~ 80%, non-condensing

0% ~ 90%, non-condensing

Device: 255g, Bracket: 57g (including washers and bolts)

58 x 190 x 44 (Bottom) / 34.6 (Top) (mm)

CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE

Not supported

Supported (10/100 Mbps, auto MDI/MDI-X)

1 ch Master / Slave (Selectable)

OSDP V2 Compliant

1 ch Input / Output (Selectable)

2ch Inputs

1 Relay

Not supported

Not supported

Not supported

Not supported

Supported

Voltage: 12 Vdc
Current: Max. 0.4 A

1)DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioLite N2.

2)RF read range will vary depending on installation environment.
