The Cambium Networks PTP 650 Wireless Broadband solutions are ruggedized to operate in the toughest environments. Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment, especially when mounted as high as 300m. Therefore, lightning protection is critical to minimize the potential for damage.

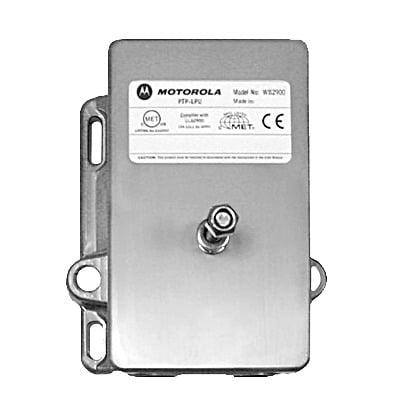

Cambium Networks strongly recommends that all PTP 650 installations should be deployed with the PTP-LPU. Network operators should always follow best-practices for grounding and lightning protection. Doing so will minimize network outages and reduce the associated costs of tower climbs and equipment repair/replacement.
Compatible with all bands
Transfer rate: 1000 Base T Connectors: RJ 45 Protection mode: Line-to-line and line-to-ground Response time: 5 nanoseconds Mounting: Pole mount 1-3” (25-75 mm), or wall mount Metal enclosure Projected 10-year operational life Dimensions (including glands): 6.3” Length (16 cm), 4” (10 cm) Width, 3.5” (9 cm) Height Weight: 1.5 lbs (700 g) Wind loading: 150 mph (242 kph) Operating temperature: -40° F (-40° C) to +140° F (+60° C) Humidity: 100% condensing Tested to IEEE / ANSI C62.41 10/1000 long wave: 120 amp peak, peak power 14,000 watts Environmental protection: IP65 / NEMA-3R
